Cynergy 3

CSSF22 SERIES

Miniature internal fitting switch

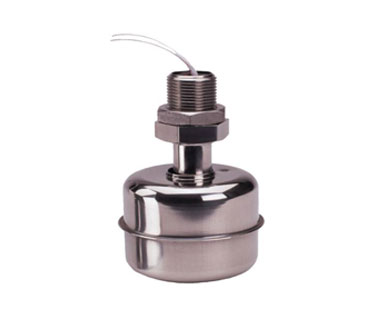

The SSF22 series is compact vertical internally mounted device. Mounting is in the top or bottom of the tank from the inside, so requires access to the inside of the tank.These are manufactured in 316 grade Stainless steel.

The switch action may be reversed by removing the float, inverting and then refitting it to the stem.

FEATURES
  • Internal fitting VIA 1/8? thread stainless steel 316
  • Miniature design
  • 1?? Temperature upto 120?C
  • User configurable N/o (make on rise) or N/C (make n fall)

Application - Boiler float switch, Feeder tank and many more.
MECHANICAL SPECIFICATION
Specifications Description Specifications Description
Mounting style Internal Cable length Standard 100cm
Mounting thread 1/8?? BSP Cable Size 7/0.10-AWG22
Float & Stem material 316 Grade SS Cable conductor material Tinned Copper
Maximum Temperature 120?C Cable sheath material XLPE
Maximum Pressure 10 Bar Cable temperature rating 125?C
Float SG 0.7 Sealing Gasket Not supplied
Minimum Fluid SG 0.8 Tightening torque for fixing nut 2.0kg/cm
ELECTRICAL SPECIFICATION
Specifications Description
Contact Form N/O (N/C)
Switching Power Max VA 50
Switching Voltage AC Max V 300
Switching Voltage DC Max V 300
Switching Current Max A 0.5
Standard Parts MATERIAL MAX POWER LEADOUTS
SSF22?100 SS316 50VA 100CM XLPE 17/0.1
