Stocko

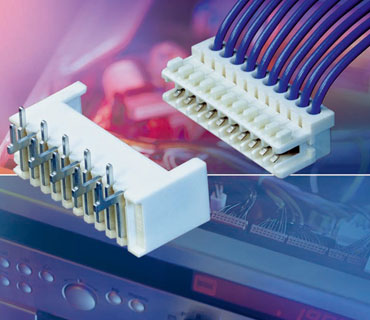

• Crimp version for indirect connections,
  wire range 0.12 - 0.5 mm²

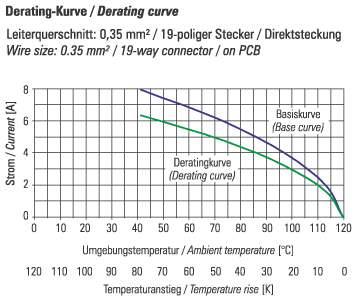

• IDC version for direct and indirect connections,
  wire range 0.14 - 0.25 mm²
• Suitable for terminating ribbon cables and discrete wires

Pin connectors

• With or without snap-in locking device, for vertical connections
• The tandem pin connectors can be used as flying lead connection

• Direct and indirect connectors with IDC termination in accordance with the RAST 2.5 standard specification for home appliances
• Trimming polarizing pegs to individual requirements produces a large number of clearly defined connector combinations
• With direct edge versions, polarizing and locking feature for PCB

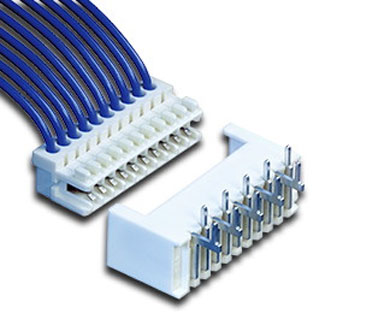

Pin connectors

• In vertical and horizontal versions facilitate 90° and 180° cable angles
• SMT version for vertical PC board assembly

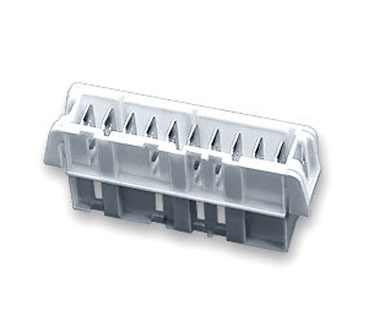

Panel mounting

• Pin connector with IDC termination for entry through back panel
• Lockable in metal thickness 0.8 ± 0.1 mm

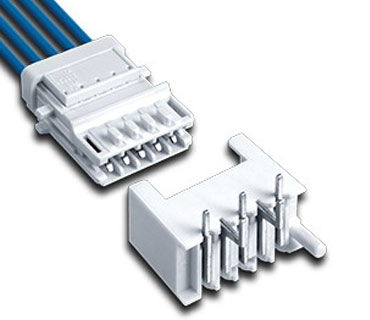

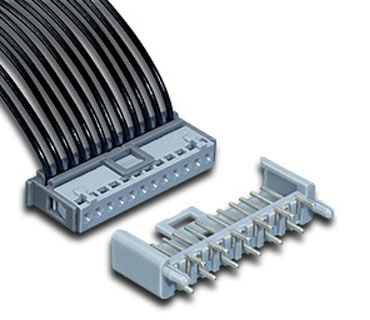

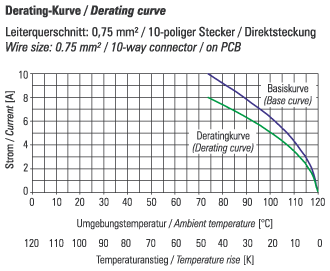

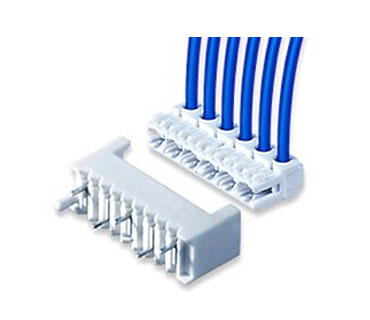

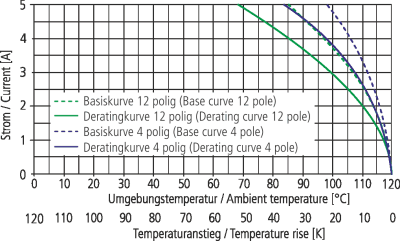

• Direct and indirect connectors with crimp termination
• Codings in accordance with the RAST 2.5 standard specification for home appliances
• Closed cable entries ensure long air and creepage distances
• Trimming polarizing pegs to individual requirements produces a large number of clearly defined connector combinations
• With direct edge versions, polarizing and locking feature for PCB
• Primary and secondary lock

Pin connectors

• In vertical and horizontal versions facilitate 90° and 180° cable angles
• SMT version for vertical PC board assembly

Pin connector panel mount

• Compatible with pin connector of ECO-TRONIC with IDC termination
• Lockable in metal thickness 0.8 ± 0.1 mm

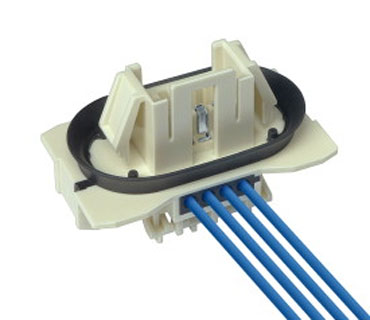

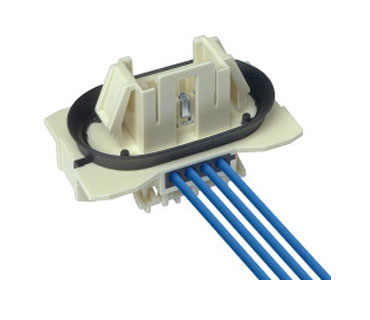

ECO-TRONIC SPM is a connector system that was specially developed for use e.g. in refrigerators. ECO-TRONIC SPM is a panel mount application which can be inserted in the rear wall of a refrigerator. The cavity of this rear wall is filled with PU foam.. The panel mount application, which is contacted with cables, is inserted into the rear wall without any further manual work. No manual sealing is required for the panel mount application, saving valuable time and therefore reducing manufacturing costs. The molded seal prevents the PU foam from penetrating both inside the connector and through the opening in the panel mount wall. The seal has been verified under production conditions. In addition, a positive IP 67 test has been carried out.

Features

• Sealed pin connector with IDC termination for panel mount applications
• Seal against PU foam in refrigerators and freezers
• Protection class IP 67 on the cable side, when installed
• For mating connector according to white device specification RAST 2.5
• Coding acc. to RAST 2.5

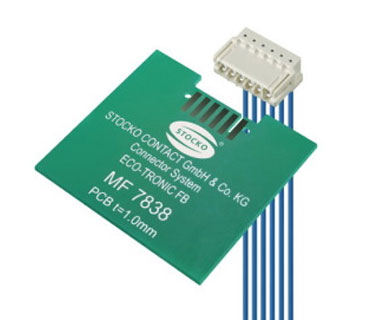

ECO-TRONIC FB is a connector system that is suitable for classic FR4 printed circuit boards with a reduced PCB thickness of 1 mm. The requirements of various fields of application, in particular the automotive industry, were taken into account in the design layout. The performance profile makes this series particularly suitable for applications in the areas of LED lighting and display contacting. It is also suitable for applications such as contacting sensors and actuators.

The contact layout guarantees electrically and mechanically stable contacting between the contact and the wires with a cross section of 0.22 mm² and 0.35 mm². Protection against mismating by means of polarising elements and mechanical locks against contact damage when misplacing ensure the quality of the connection in handling and in the application. In addition, automatic processing of the connectors ensures high quality standards throughout the entire production process.

IDC housing

• Direct connector IDC
• Pitch 2.5 mm
• Interface according to RAST 2.5
• Lock between plug and PCB
• Premounted contacts
• Cable exit 90°
• Wire size 0.22 and 0.35 mm²
• For board thickness 1 mm

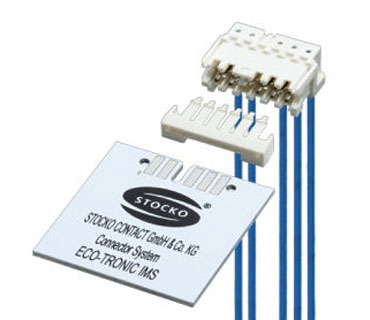

ECO-TRONIC IMS is a connector system that is suitable for classic FR4 printed circuit boards and for IMS printed circuit boards (one-sided). The requirements of various fields of application, in particular the automotive industry, were taken into account in the design layout. The performance profile makes this series particularly suitable for applications in the areas of LED lighting and display contacting. It is also suitable for applications such as contacting sensors and actuators.

The contact layout guarantees electrically and mechanically stable contacting between the contact and the wires with a cross section of 0.22 mm² and 0.35 mm². Protection against mismating by means of polarising elements and mechanical locks against contact damage when misplacing ensure the quality of the connection in handling and in the application. In addition, automatic processing of the connectors ensures high quality standards throughout the entire production process.

Connector system

• Direct connector system
• Insulation of contacts
• Pitch 2.5 mm
• Interface according to Rast 2.5
• Polarisation and codings
• Lock between plug and PCB
• Temperature range max. 130°C

Housing

• Premounted contacts
• Cable exit 90°
• Wire size 0.22 mm² und 0.35 mm²
• Packaging in magazine

Contact

• Surface finishing Sn
• IDC-technology
• One-sided contacting, contact force absorbed by two spring arms. The spring arm on the back (conductive IMS side) is insulated by a special contact cover.

Contact insulation

• Insulation comb MV 7640
• 3 - 10 way
• Loose (insulation of contacts)

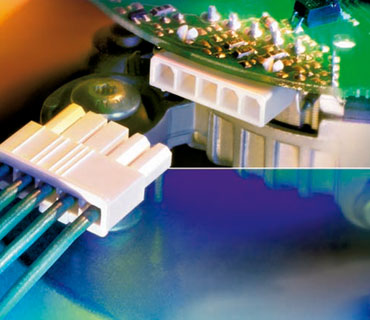

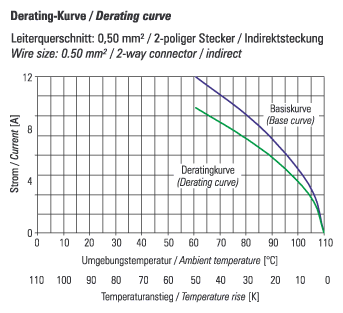

IDC housings

• Direct and indirect connector with IDC termination in accordance with the RAST 5 standard specifications for home appliances, with locking features inside or outside
• Direct connector with central polarizing and polarizing pegs at sides, locking features for PCB
• Cable exit 90° and 180° according to RAST 5

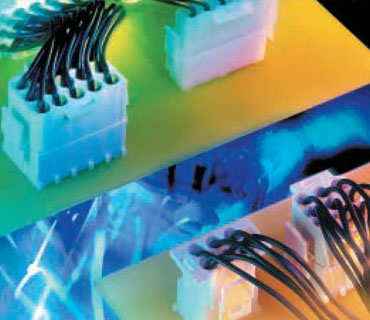

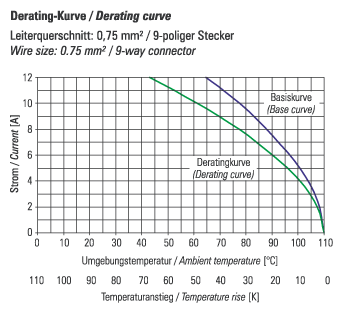

Tab connectors

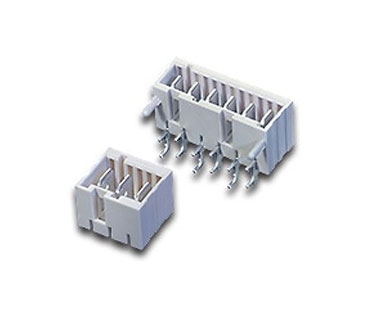

• Versions for vertical or horizontal PC board assembly see series ECO-FLEX M

Tab connector

• For flying lead or panel mounting
• Dimensions of housing in accordance with RAST 5 standard specification for home appliance

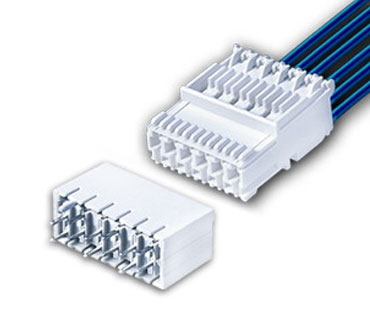

• Mating connector for series ECO-DOMO NF and ECO-DOMO Crimp
• The connection is made on 6.3 x 0.8 mm tab
• Different codings

Features

• Tab connector for IDC termination as flying lead coupling or for panel mounting application
• Versions with / without locking features
• Cable exits 90°, 180° (optional 270°)
• Single and / or twin terminations depending on wire size
• Codings in accordance with the RAST 5 standard specifications
• Label optional

Features

• Tab connector with/without separating plate
• SMT version for vertical PC board assembly
• Versions for vertical or horizontal PC board assembly
• Higher horizontal version also suitable for connectors with locking features outside
• For in-line or dual-line hole patterns
• Individual polarizing and positioning possible
• Pegs optional

Features

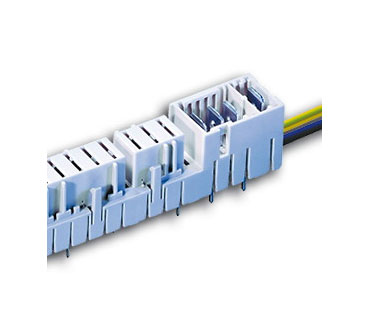

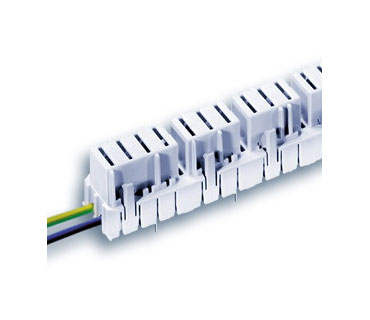

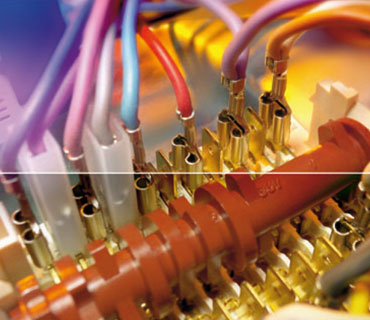

• Tab connector with bridging contacts
• Connector system allowing individual, free contact combinations in accordance with the RAST 5 - standard specification for home appliance
• Versions for vertical or horizontal PC board assembly
• For dual-in-line or in-line hole patterns
• Contact surface lead-free
• Clear grouping of connecting positions using movable inserts or empty spaces
• Neutral and/or grounded bridging contacts
• Individual polarizing possible
• Polarizing pegs optional
• Advancing tab contacts as grounded conductor optional

Mating Connectors

• Suitable for RAST 5 indirect connectors in screw, crimp, or IDC technology (In case of advancing tab contacts subject on request)
• 8105B screw type)
• EH 688 / EH 699 (crimp type)
• ECO-DOMO (IDC type)

Applications

• Home appliances industry
• Heating industry

Features

• Socket connector with bridging contacts
• Connector system allowing individual, free contact combinations in accordance with the RAST 5 - standard specification for home appliance
• Versions for vertical or horizontal PC board assembly
• For dual-in-line or in-line hole patterns
• Contact surface lead-free
• Clear grouping of connecting positions using free choice of contact spacing
• Neutral and/or grounded bridging contacts
• Individual positioning and polarizing possible
• Polarizing pegs optional

Mating Connectors

• Suitable for RAST 5 indirect connectors in screw, crimp, or IDC technology
• 8105FU (screw type)

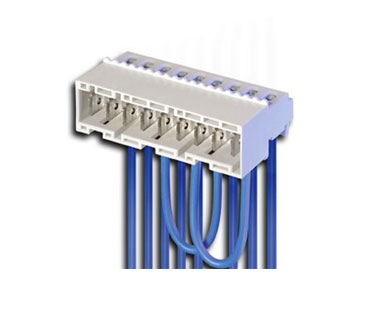

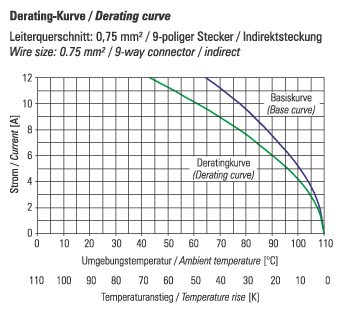

• ECO-DOMO TI (series MS 9460)

Applications

• Home appliances industry
• Heating industry

Features

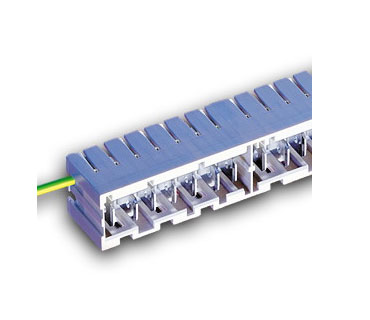

• Connectors in tab/socket combinations with bridging contacts
• Connector system allowing individual, free contact combinations in accordance with the RAST 5 - standard specification for home appliance
• Versions for vertical or horizontal PC board assembly
• For dual-in-line or in-line hole patterns
• Contact surface lead-free
• Clear grouping of connecting positions using movable inserts or empty spaces
• Neutral and/or grounded bridging contacts
• Individual positioning and polarizing possible
• Polarizing pegs optional
• Advancing tab contacts as grounded conductor optional

Mating Connectors

• Suitable for RAST 5 indirect connectors in screw, crimp, or IDC technology (In case of advancing tab contacts subject on request)
• 8105B / 8105FU (screw type)
• EH 688 / EH 699 (crimp type)
• ECO-DOMO (IDC type)

Applications

• Home appliances industry
• Heating industry

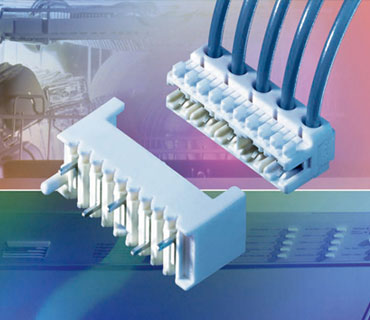

IDC housings

• Direct- and Indirect connectors with IDC termination in accordance to the RAST 2.5 standard specification for home appliances
• Trimming polarizing pegs to individual requirements produces a large number of clearly defined connector combinations
• With direct edge versions, polarizing and locking feature for PCB

Pin connectors

• Versions for vertical or horizontal PC board assembly

ECO-TRONIC SPM is a connector system that was specially developed for use e.g. in refrigerators. ECO-TRONIC SPM is a panel mount application which can be inserted in the rear wall of a refrigerator. The cavity of this rear wall is filled with PU foam.. The panel mount application, which is contacted with cables, is inserted into the rear wall without any further manual work. No manual sealing is required for the panel mount application, saving valuable time and therefore reducing manufacturing costs. The molded seal prevents the PU foam from penetrating both inside the connector and through the opening in the panel mount wall. The seal has been verified under production conditions. In addition, a positive IP 67 test has been carried out.

Features

• Sealed pin connector with IDC termination for panel mount applications
• Seal against PU foam in refrigerators and freezers
• Protection class IP 67 on the cable side, when installed
• For mating connector according to white device specification RAST 2.5
• Coding acc. to RAST 2.5

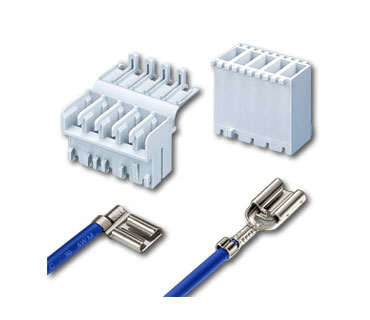

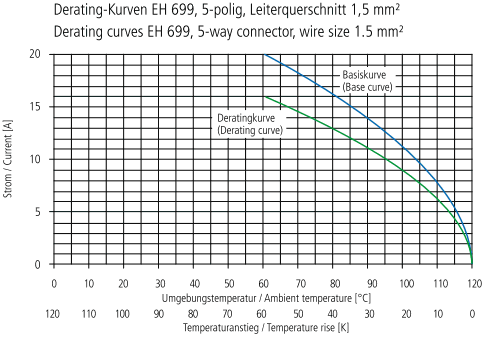

Features

• Housings with crimp connection
• Dimensions of housings in accordance with RAST 5 standard specifications for home appliances
• Different polarizing features to RAST 5
• Indirect connector with inside locking device
• Cable exit 90° / 180°

Features

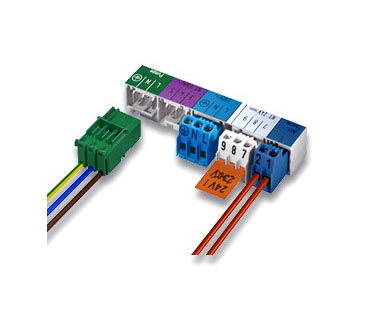

• Tab connector ECO-FLEX with RAST 5 PCB connectors in screw-type technology in accordance with RAST 5 standard specification for home appliances
• PCB connectors in various colors
• Suitable for solid or stranded wire with or without end splice
• Cable exit 90°, 180° or 270°, depending upon connector
• Labelling and/or colour coding optional

Features

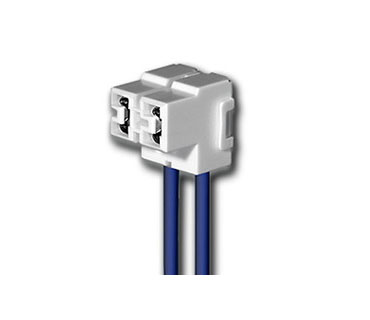

• 2-way sensor plug
• Pitch 6.5 mm
• Loadable with flag receptacles 4.8 mm RSB 8186
• Cable exit 90°
• Locking cap
• Different colours

Features

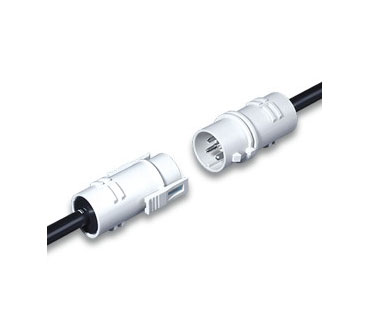

• 1- to 4 ways circular connector
• Round contacts for crimp termination
• Sealed according to IP44
• Two-sided external locking latches
• Possibility of coding
• Single or hose cable
• Cable exit 180°
• Clamping possibility for lateral plate cut out
• Housing rip
