CSSF24 SERIES

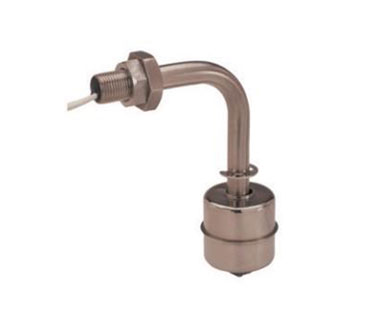

Miniature Vertical side mount switch
The C SSF24 series is a compact vertical float action switch that is horizontally mounted and designed to achieve reliable switching. Mounting is in the side of the tank from the inside, so requires access to the inside of the tank.
They are manufactured in 316 grade stainless steel and will work in liquids of SG 0.8 minimum.

The switch action may be reversed by removing the float, inverting and then refitting it to the stem.

FEATURES
  • Internal side mount switch
  • Stainless steel 316
  • Compact design
  • User configurable N/O (make on rise) or N/C (make on fall)

Application - Industrial Cleaning unit ,Feader tank and many more.
MECHANICAL SPECIFICATION
Specifications Description Specifications Description
Mounting style Internal Cable length - standard 30cm
Mounting thread 1/8”BSP Cable size 17/0.10 - AWG22
Float & Stem material 316grade SS Cable conductor material Tinned copper
Maximum Temperature 120ºC Cable sheath material XLPE
Maximum pressure 10 bar Cable temperature rating 125ºC
Float SG 0.7 Sealing gasket Not supplied
Minimum fluid SG 0.8 Tightening torque for fixing nut 2.0kg/cm
ELECTRICAL SPECIFICATION
Specifications Description
Switching Power Max VA 50
Switching Voltage AC Max V 300
Switching Voltage DC Max V 300
Switching Current Max A 0.5
Standard Parts MATERIAL MAX POWER LEADOUTS
CSSF24X030 SS 316 50VA 30cm XLPE 17/0.1
