SS28HS3DIN SERIES

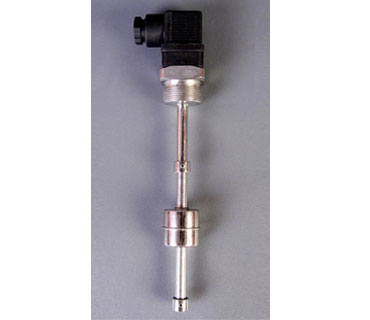

Three Point Stainless Steel switch with DIN connector This is a Compact external top mount Level switch. Easy end connection by DIN43650 connector. Construction has SS Stem and Float can be in SS or in engineering grade plastic as per application demand. Material variations for plastics are Base polymer Polyamide and Polypropylene.
Mounting can be 1”BSP or ½”BSP with female socket to be welded directly on the tank.
User Configurable Switching action i.e NO/NC is possible by selecting proper float orientation during Switching action. Level Sensor can be customized in terms of variable insertion depths; multiple switching direct switching for high power loads and harsh industrial environments.

Typical application includes Level Sensing in Automotive applications, Liquid Food stuffs; Printing machinery.

FEATURES
  • Stainless Steel Material
  • Single or Dual, triple Switching Levels
  • 1’’ BSP thread & DIN Connector for Quick Circuit Connection

Application - Printing machinery, Liquid food stuffs and many more.
MECHANICAL SPECIFICATION
Specifications Description Specifications Description
Mounting style External Connection DIN43650
Mounting thread 1’’ BSP Max Temperature 125ºC
Float & Stem material SS 304 Grade Other connections P11
Gland.
Maximum Temperature 5 Bar ( up to 200 mm Length Tightening Torque (nut) 2.0kg/cm
Float SG 0.7 Min Fluid SG 0.85
ELECTRICAL SPECIFICATION
Specifications Description
Contact Form N/O (N/C)
Switching Power Max VA 25
Switching Voltage AC Max V 230
Switching Voltage DC Max V 5 to 24
Switching Current Max A 0.5
Standard Parts MATERIAL MAX POWER LEADOUTS
SS28HS3DIN43650EL/309 SS304 25VA 7/32 Teflon Wire
