Cynergy 3

SS28YTC SERIES

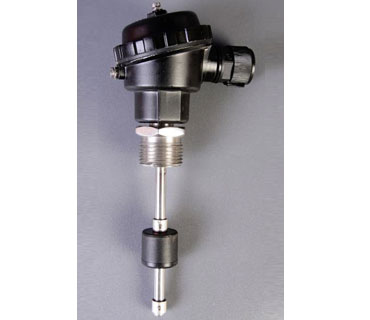

Single Point Switch in Stainless Steel with TC Head connection. This is an External or Top mount Level switch with a terminal enclosure is of IP65 & IP 67 protection grade. Cable entry in level switch is also through IP65 conduit gland which makes the level assembly suitable in dusty and harsh Industrial environment.

This Design allows user to configure the switch action as per application. Switching action can be reversed by removing the float, inverting & refitting it on the stem. Mounting Thread is of 1”BSP with female socket to be welded directly on the tank. Versions can be customized as per application demand for multiple switching and Float variations for precise switching band as per liquid properties and insertion depths Typical application includes Oil level switch, Diesel level switch , Industrial Chiller units and many more. Typical application includes Level Sensing in Automotive applications, Liquid Food stuffs; Printing machinery.

FEATURES
  • IP 67 & IP 65 protection
  • Single or Dual, triple Switching Levels
  • 1’’ BSP thread & DIN Connector for Quick Circuit Connection

Application - Oil level switch, Diesel level switch, Industrial Chiller and many more.
MECHANICAL SPECIFICATION
Specifications Description Specifications Description
Mounting style External Connection DIN43650
Mounting thread 1’’ BSP Max Temperature 125ºC
Float & Stem material SS 304 Grade Other connections P11Gland
Maximum Temperature 5 Bar ( up to 500 mm Length Tightening Torque (nut) 2.0 kg/cm
Float SG 0.8 Min Fluid SG 0.8
ELECTRICAL SPECIFICATION
Specifications Description
Contact Form N/O (N/C)
Switching Power Max VA 25
Switching Voltage AC Max V 230
Switching Voltage DC Max V 5 to 24
Switching Current Max A 0.5
Standard Parts MATERIAL MAX POWER LEADOUTS
SS28YS1TC/200 SS304 25VA Yellow 22 AWG 17/UL 1569
