SSV66 SERIES

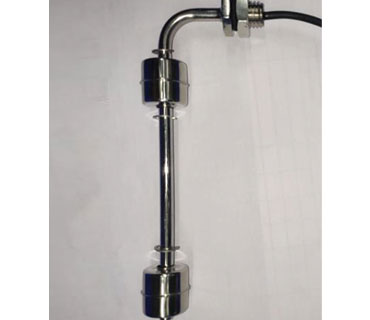

The SSV66A35A155SM16 is a dual switch point side entry vertical float switch. This is mounted in a tank from the inside, so requires suitable access to the inside of the tank.

This dual float version give make on rise for both high and low levels (normally used for tank emptying control) and has a liquid depth differential of 120m from high to low levels.

FEATURES
  • Side mount vertical switch
  • Dual switch point for high or low indication
  • Stainless steel 316L
  • Operating temperature to 120ºC

Application - Feeder tank, Industrial Cleaning unit and many more.
MECHANICAL SPECIFICATION
Specifications Description Specifications Description
Mounting style Internal Cable length - standard 1 metre or M12
Mounting thread M16 Cable size 4 core 7/0.2
Float & Stem material 316grade SS Cable conductor insulation PTFE
Maximum Temperature 120ºC Cable sheath material Silicone
Maximum pressure 20 bar Cable temperature rating 180ºC
Float SG 200 dc Sealing Washer Nitrile
Switching current (A) 0.7 Tightening torque for fixing nut 2.0kg/cm
Minimum fluid SG 0.75
ELECTRICAL SPECIFICATION
Specifications Description   Description
Contact Form Upper-make on rise   Lower-make on rise Switching Power
rise Switching Power Max VA   50
Switching Voltage AC Max V   300
Switching Voltage DC Max V   300
Switching Current Max A   0.5
Wire colours Upper-Yellow/Red   Lower- Blue/Black
